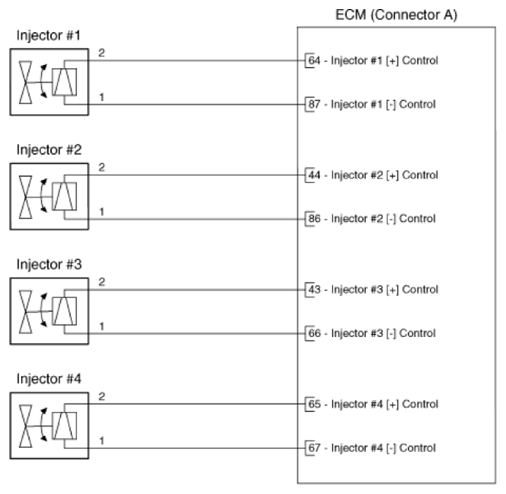

Home › Hyundai › 2020 › Sonata Limited › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 1.6L (Except HEV) › Injector › Schematic Diagrams › Circuit Diagram › Notes
