Repair Procedures: Removal

  1. Turn the ignition switch OFF, and then disconnecting the battery negative (-) terminal.
  2. Remove the intercooler upper bracket.

    (Refer to Engine Mechanical System - "INTERCOOLER ")

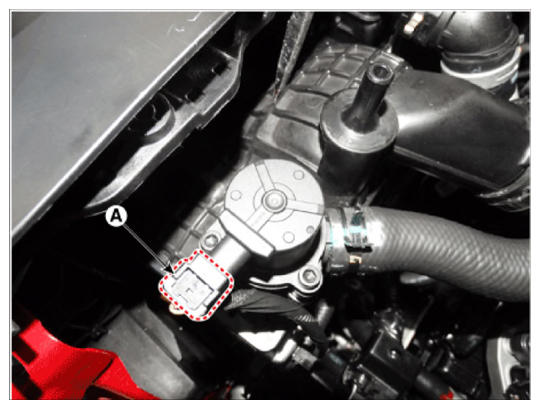

  3. Disconnect the RCV control solenoid valve connector (A).
    G14525001Courtesy of HYUNDAI MOTOR AMERICA

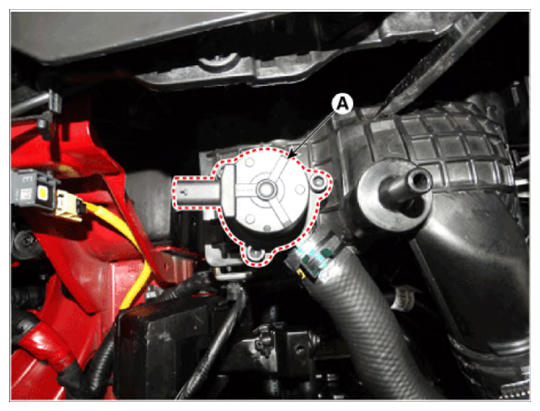

  4. Remove the RCV control solenoid valve (A) after loosening the mounting bolt.
G14525002Courtesy of HYUNDAI MOTOR AMERICA
