Components And Components Location: Components

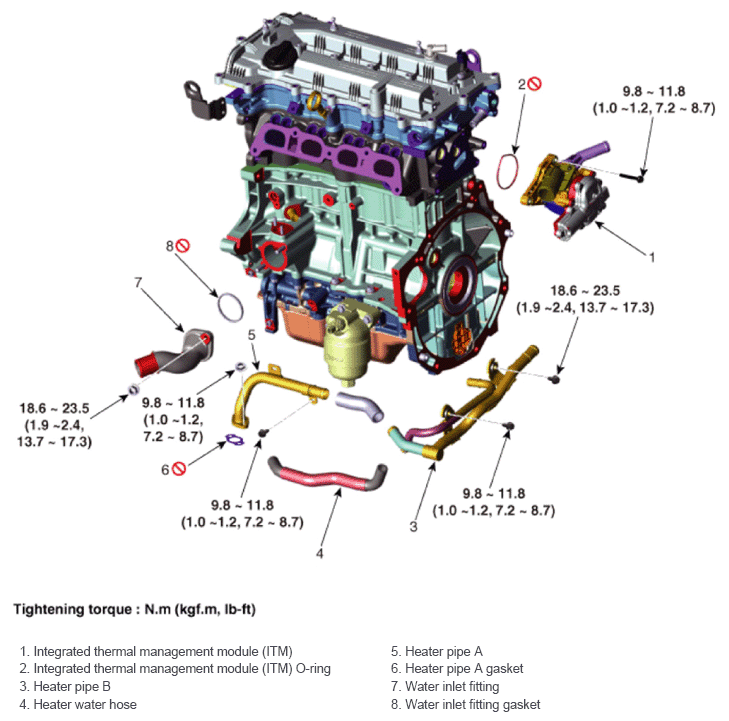

Fig 1: Thermal Management Module Motor Components Location With Torque Specification
G14525014Courtesy of HYUNDAI MOTOR AMERICA
