Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crashpad upper garnish.

    (Refer to CRASH PAD GARNISH Body - "Crashpad Garnish")

  3. Remove the crashpad center garnish.

    (Refer to CRASH PAD GARNISH Body - "Crashpad Garnish")

  4. Disconnect the start/stop button connector (A) and hazard switch connector (B).

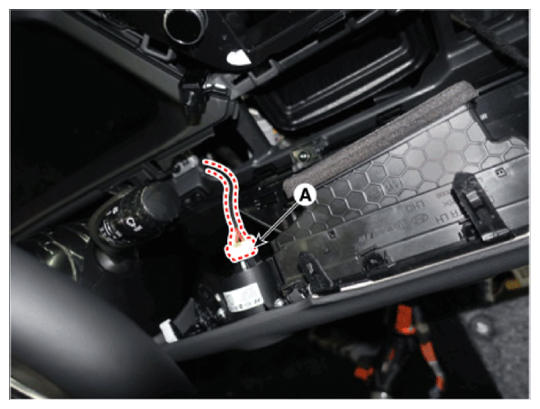

    G14527179Courtesy of HYUNDAI MOTOR AMERICA

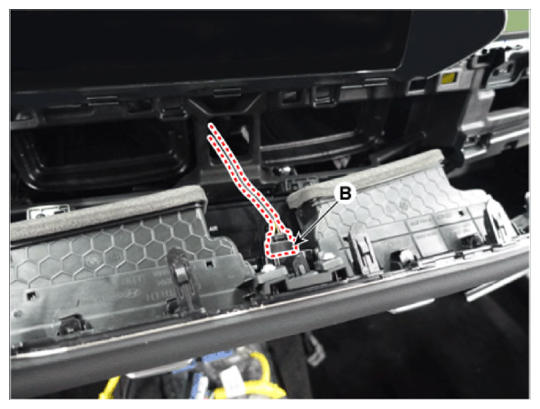

    G14527180Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the start/stop button after removing the screws.
