Repair Procedures: Removal

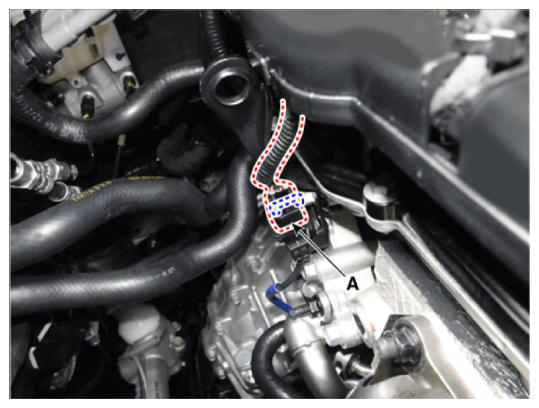

- Disconnect the crankshaft position sensor connector (A).

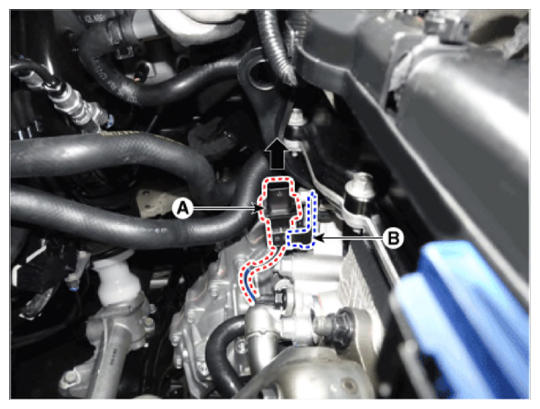

- Remove the connector (A) from the bracket (B).

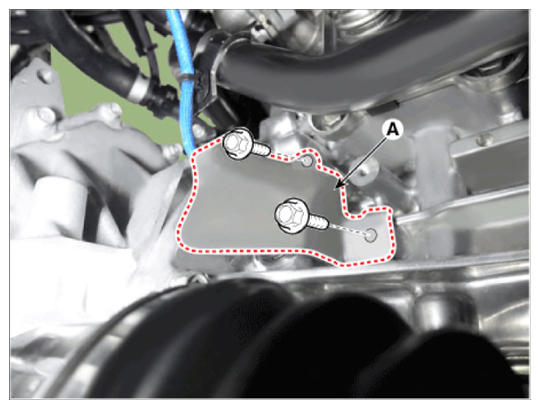

- Remove the cover (A) after loosening the mounting bolt.
Tightening Torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

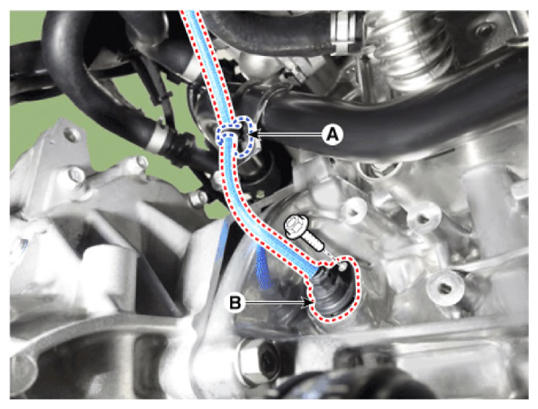

- Disconnect the wiring fixing clip (A) and then removing the sensor (B) after loosening the mounting bolt.
Tightening Torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
