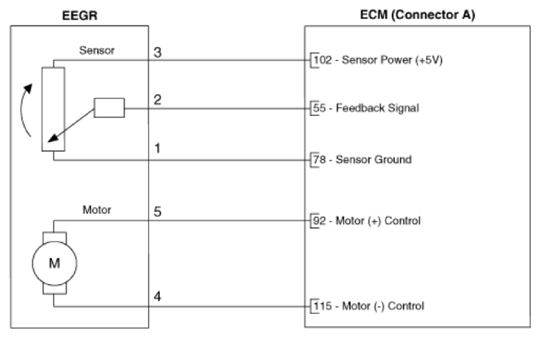

Home › Hyundai › 2020 › Sonata SE › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.5L (Except HEV) › Electric EGR Control Valve › Schematic Diagrams › Circuit Diagram › Notes
