Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Remove the rear seat.
(Refer to REAR SEAT ASSEMBLY (EXCEPT HEV) Body - "Rear Seat")

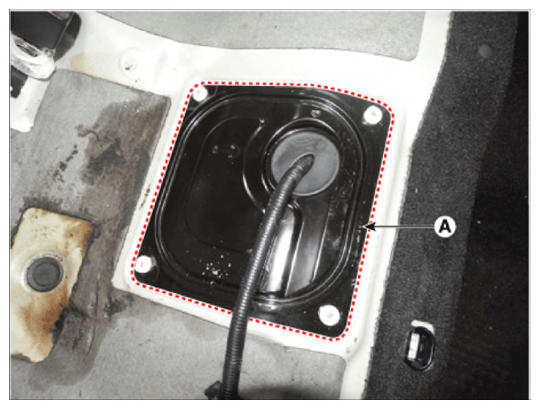

- Remove the fuel pump service cover (A).

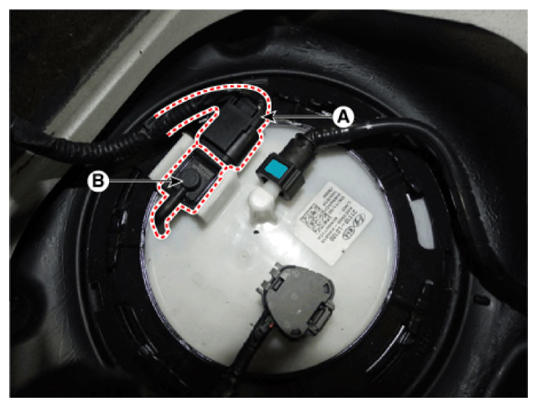

- Disconnect the fuel tank pressure sensor connector (A).
- Remove the fuel tank pressure sensor (B) after releasing the hooks vertically.
