Home › Hyundai › 2020 › Tucson Limited, FWD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.4L › Purge Control Solenoid Valve (PCSV) › Repair Procedures › Removal

Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.

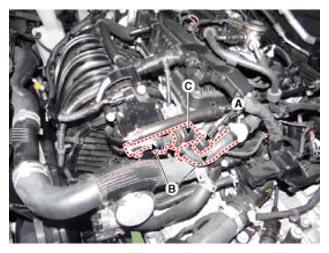

  2. Disconnect the purge control solenoid valve connector (A) and vapor hoses (B).
  3. Remove the purge control solenoid valve (A).
    G13035083Courtesy of HYUNDAI MOTOR AMERICA
