Components & Components Location: Components

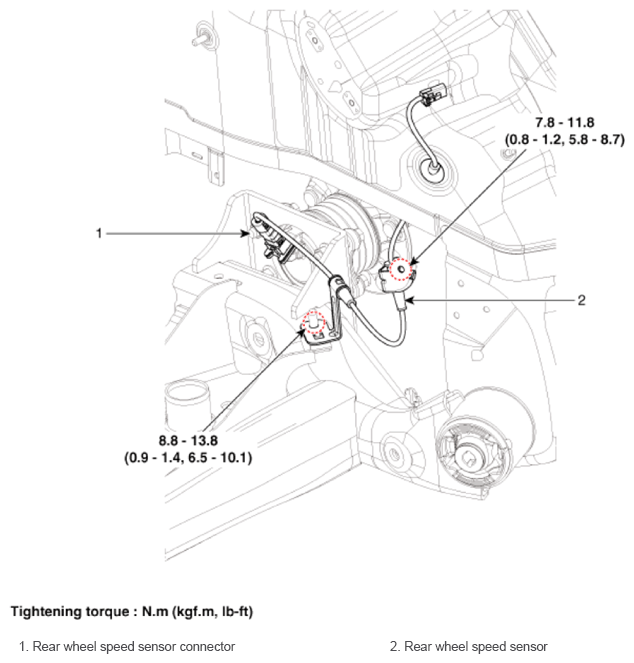

Fig 1: Rear Wheel Speed Sensor Components Location With Torque Specification
G14695547Courtesy of HYUNDAI MOTOR AMERICA
