Repair Procedures: Removal
- Disconnect the negative (-) battery terminal.
- Remove the crash pad lower panel.
(Refer to Body - "CRASH PAD LOWER PANEL ")
- Disconnect the BCM connectors.

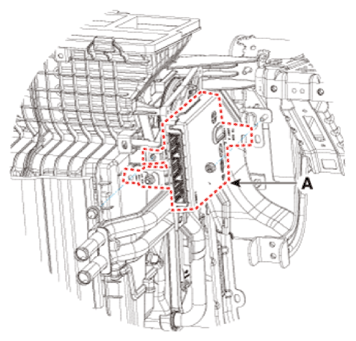

- Remove the body control module (A) after loosening the mounting bolt and nut.
