Interior 3 Antenna

  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear transverse trim.

    (Refer to Body - "TRUNK TRIM ")

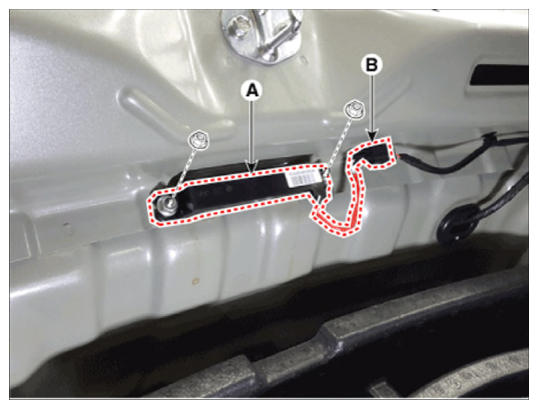

  3. Remove the interior 3 antenna (A) after loosening the mounting nuts (2EA) and disconnecting the connector (B).
    G14078624Courtesy of HYUNDAI MOTOR AMERICA
