Repair Procedures: Installation

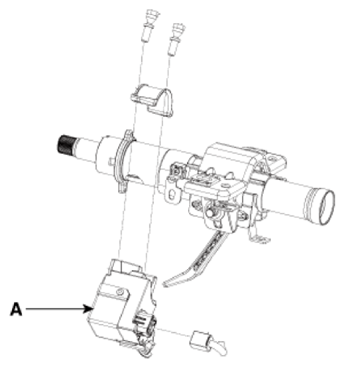

Install the electronic steering column lock (A).
CAUTION: Do not reuse the shear bolts.
When installing the new shear bolts to the electronic steering column lock, tighten the shear bolts until its head is cut off.

Tightening torque:

7.0 - 13.0 N.m (0.7 - 1.3 kgf.m, 5.0 - 9.4 lb.ft)

Courtesy of HYUNDAI MOTOR AMERICA
Install the steering column.
Install the crash pad lower panel.
