Repair Procedures: Removal
- Disconnect the negative (-) battery terminal.
- Remove the crash pad lower panel.
(Refer to Body - "CRASH PAD LOWER PANEL ")
- Remove the steering column upper and lower shrouds.
(Refer to Body - "STEERING COLUMN SHROUD PANEL ")

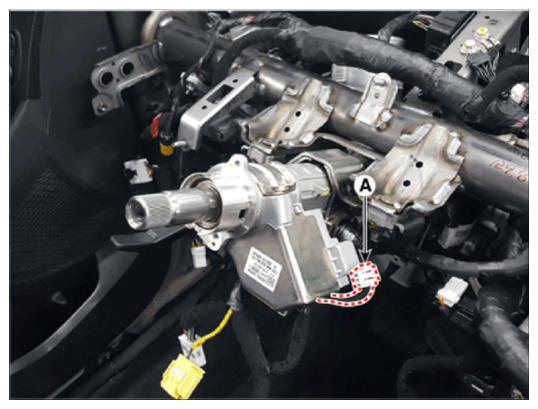

- Disconnect the electronic steering column lock connector (A).

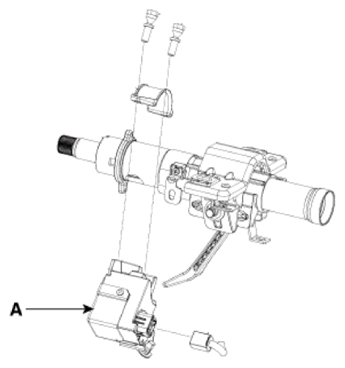

- Remove the electronic steering column lock (A) after loosening the mounting bolts.
