Components And Components Location: Components

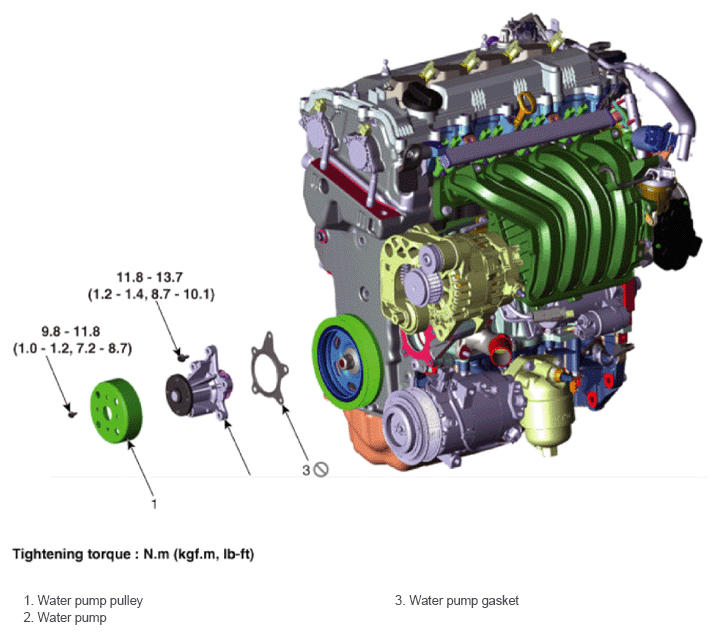

Fig 1: Water Pump Components Location With Torque Specifications
G14076554Courtesy of HYUNDAI MOTOR AMERICA
