Home › Hyundai › 2021 › Accent Limited › Repair and Diagnosis › Engine Mechanical › Mechanical › Cylinder Block Assembly › Components And Components Location › Components

Components And Components Location: Components

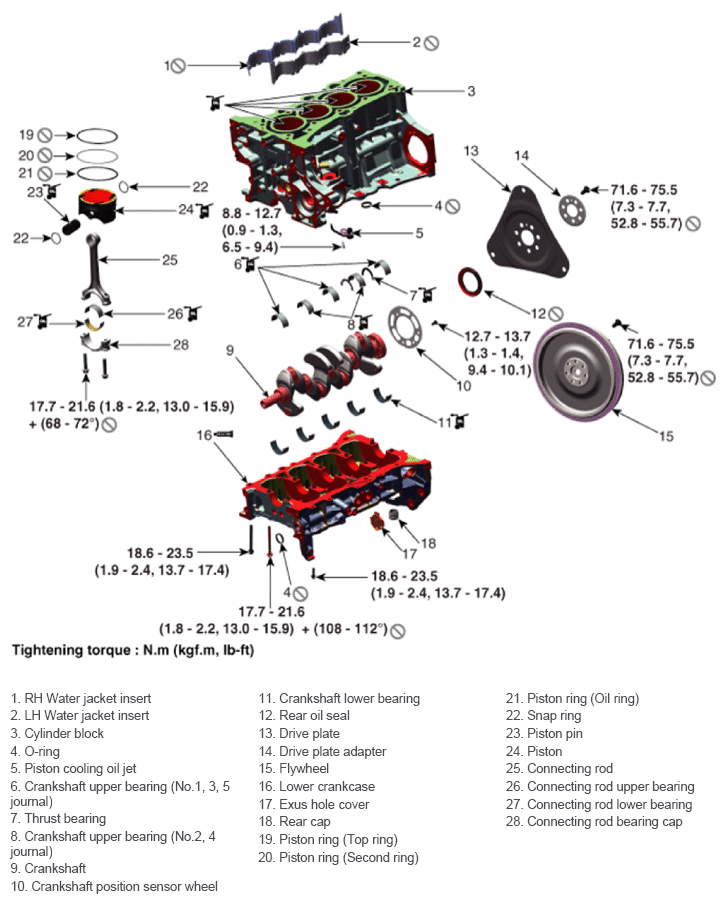

Fig 1: Cylinder Block Components Location With Torque Specifications
G14076418Courtesy of HYUNDAI MOTOR AMERICA
