Home › Hyundai › 2021 › Accent Limited › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System › Purge Control Solenoid Valve (PCSV) › Repair Procedures › Removal

Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.

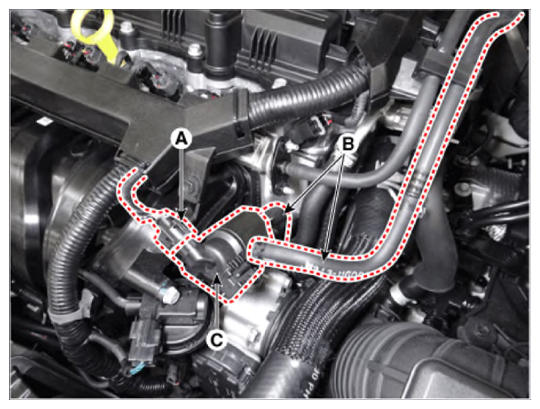

  2. Disconnect the purge control solenoid valve connector (A).
  3. Disconnect the vapor hoses (B).
  4. Remove the purge control solenoid valve (C).
    G14076995Courtesy of HYUNDAI MOTOR AMERICA
