Repair Procedures: Installation
WARNING: This page is about a different variant/trim than selected.
- Install is proceeds as follows.
*How to install the ignition lock & clutch switch

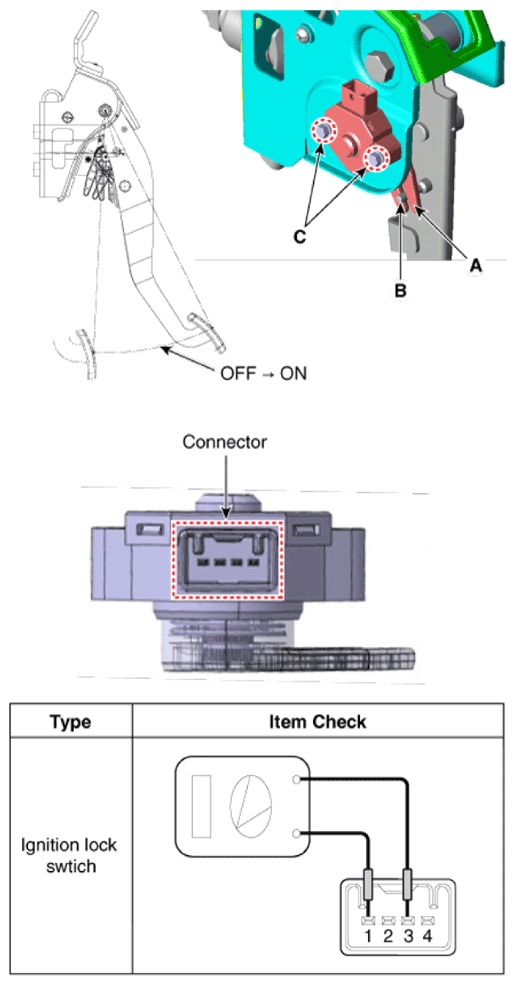

- After inserting the switch lever (A) into the clutch pedal pin (B), pre-tighten the switch mounting bolts (C).
- Set the clutch switches so as to confirm that the electric current is applied to the pins (1) and (3).
- Fix the clutch pedal to the ignition lock switch OFF→ON strokes (F).
- With the pedal fixed, rotate the switch clockwise and counter-clockwise to set it to a position at the transition from OFF to ON. Then, tighten the mounting bolts (C) to the specified torque.
- Once completing the assembly, check again that the switch is correctly operating.
* OFF→ON stroke tolerance should be within ± 7.7 mm (0.3031 in.)
OFF → ON Position (F):
121.8 ± 7.7 mm (4.7953 ± 0.3031 in.)
Tightening torque:
2.0 - 3.9 N.m (0.2 - 0.4 kgf.m, 1.4 - 2.9 lb-ft)
