Home › Hyundai › 2021 › Accent Limited › Repair and Diagnosis › Transmission › Automatic Trans › Engine And Transaxle Assembly (R&I) › Engine Mounting › Components And Components Location › Components

Components And Components Location: Components

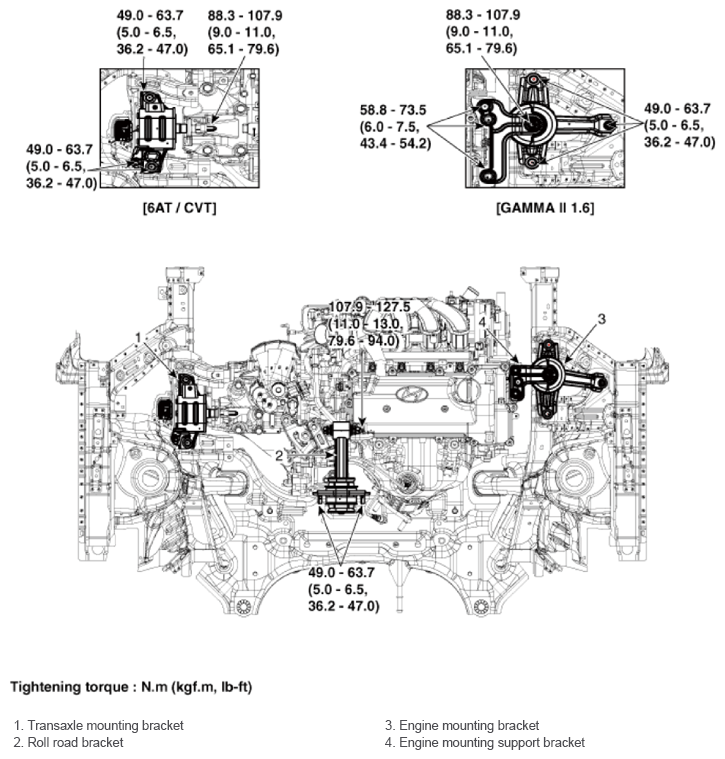

Fig 1: Engine Mounting Components Location With Torque Specifications
G14076238Courtesy of HYUNDAI MOTOR AMERICA
