Intelligent Variable Transmission (IVT) Control System
›
Parking Sprag
›
Components and Components Location
Components and Components Location

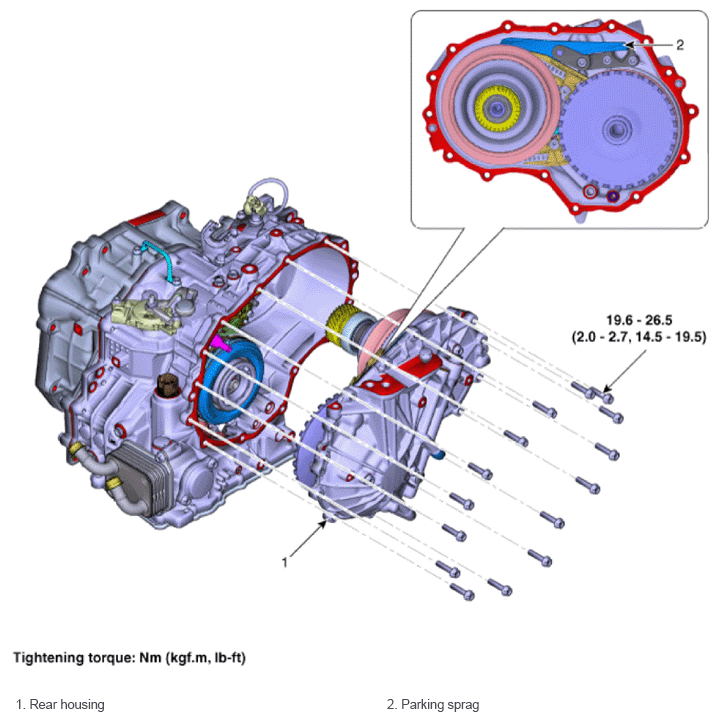

Fig 1: Parking Sprag Components Location With Torque Specification
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
