Home › Hyundai › 2021 › Accent Limited › Repair and Diagnosis › Transmission › Automatic Trans › Intelligent Variable Transmission (IVT) › Components And Components Location › Components

Components And Components Location: Components

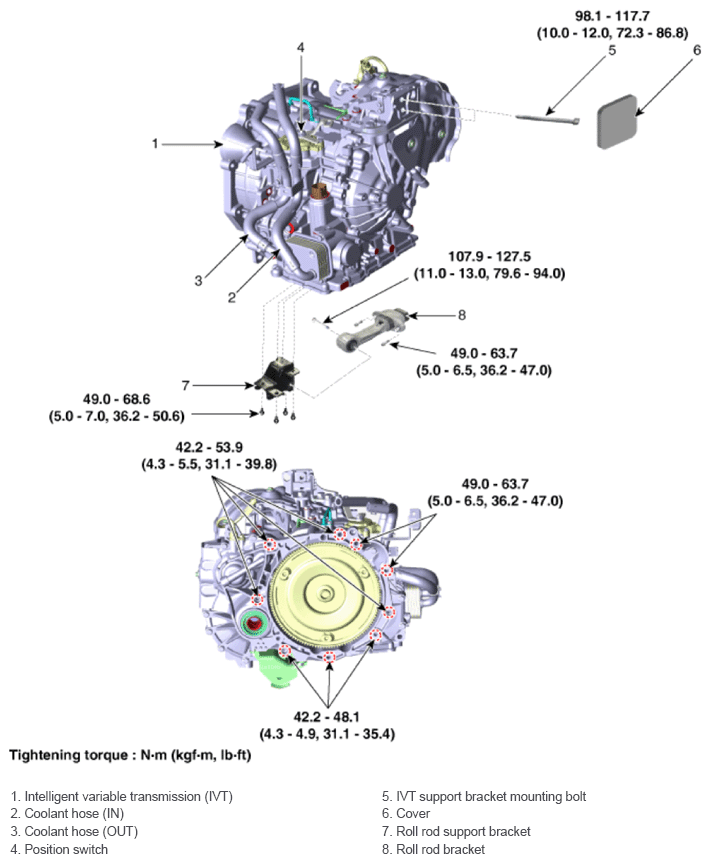

Fig 1: Intelligent Variable Transmission Components Location With Torque Specifications
G14077287Courtesy of HYUNDAI MOTOR AMERICA
