Components And Components Location: Components

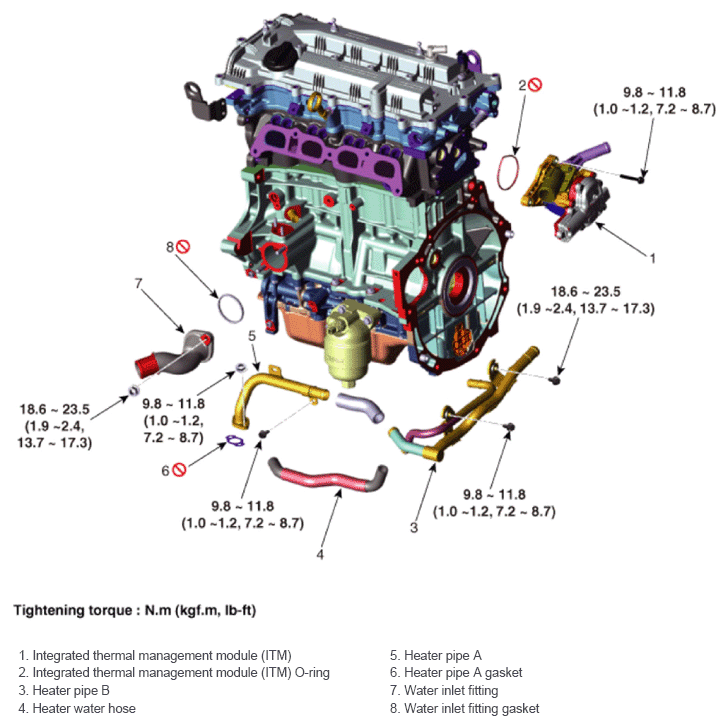

Fig 1: Integrated Thermal Management Module Components Location With Torque Specification
G14077035Courtesy of HYUNDAI MOTOR AMERICA
