Engine Coolant Temperature Sensor (ECTS) #2
- Turn ignition switch OFF and disconnect the negative (-) battery cable.
- Remove the intake manifold.
(Refer to Engine Mechanical System - "INTAKE MANIFOLD ")

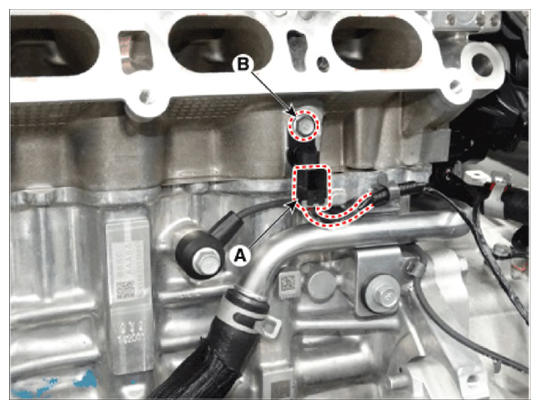

- Disconnect the engine coolant temperature sensor connector (A).
- Remove the engine coolant temperature sensor after loosening mounting bolt (B).NOTE:
- Note that engine coolant may flow out when removing the sensor.
