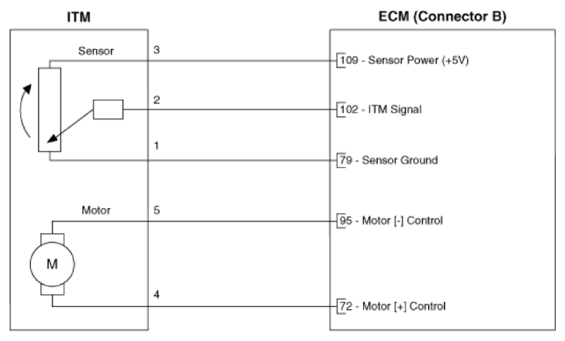

Home › Hyundai › 2021 › Elantra Limited › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.0L (Except HEV) › Thermal Management Module (TMM) Motor › Schematic Diagrams › Circuit Diagram › Notes
