Home › Hyundai › 2021 › Elantra Limited › Repair and Diagnosis › Transmission › Transmission Control Systems › IVT Control System - 2.0L (Except HEV) › Shift Cable › Components & Components Location › Components

Components & Components Location: Components

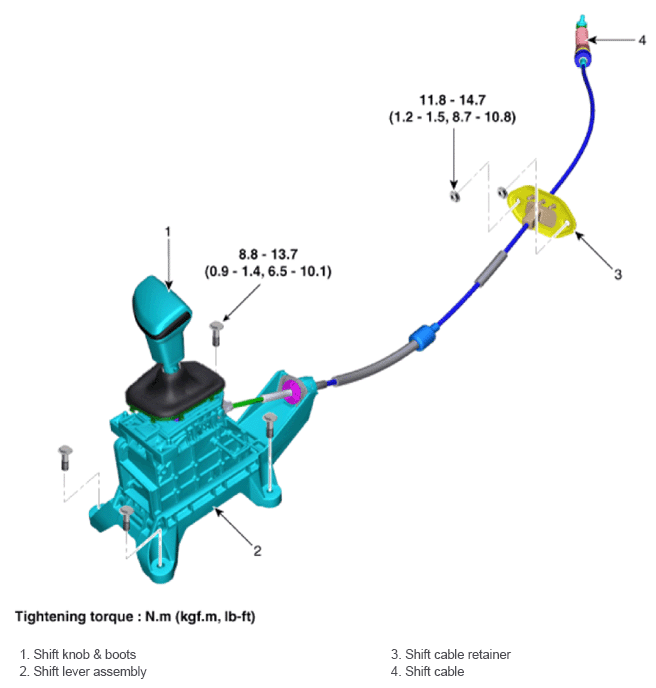

Fig 1: Shift Cable Components Location With Torque Specification
G14607825Courtesy of HYUNDAI MOTOR AMERICA
