Smart Key Unit (IBU)
- Disconnect the negative (-) battery terminal.
- Remove the glove box housing cover.
(Refer to Body - "GLOVE BOX HOUSING COVER .")

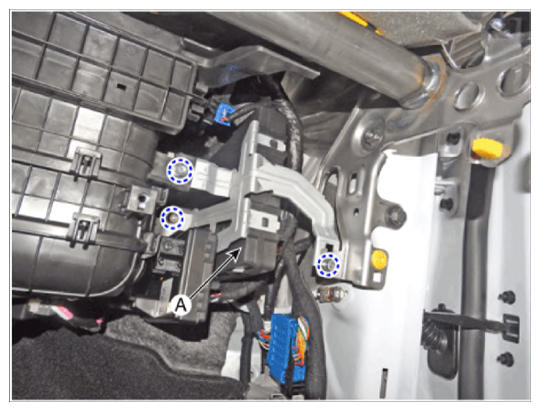

- Remove the smart key unit (IBU) (A) after loosening bolt and nuts.

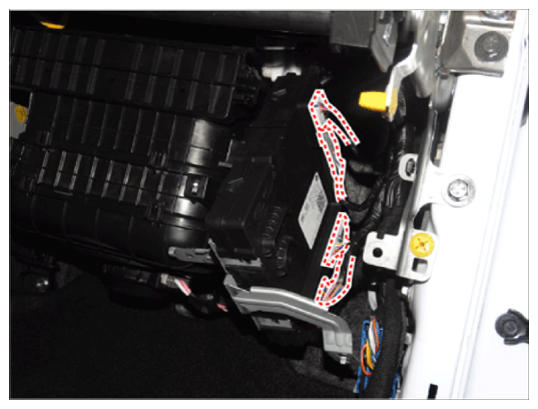

- Disconnect smart key unit (IBU) connectors.
