Repair Procedures: Inspection

  1. Check signal waveform of CKPS and CMPS using a diagnostic tool.

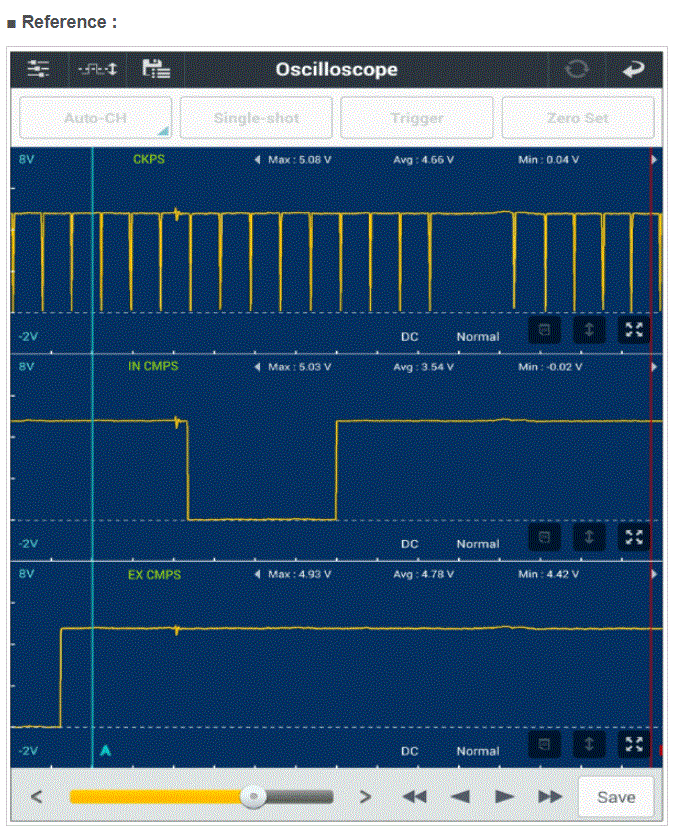

    Specification:  Refer to below figure

    G00616132Courtesy of HYUNDAI MOTOR AMERICA
