Repair Procedures: Removal

Turn ignition switch OFF and disconnect the battery negative (-) terminal

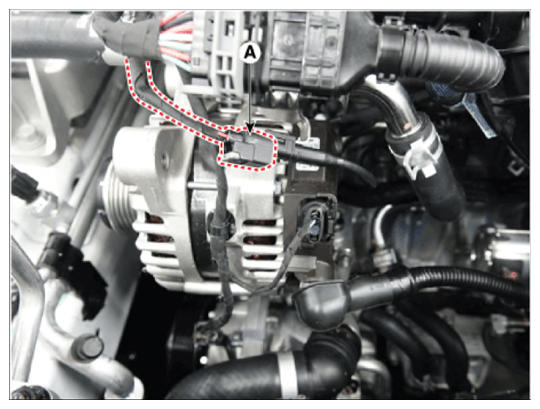

Disconnect the knock sensor connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

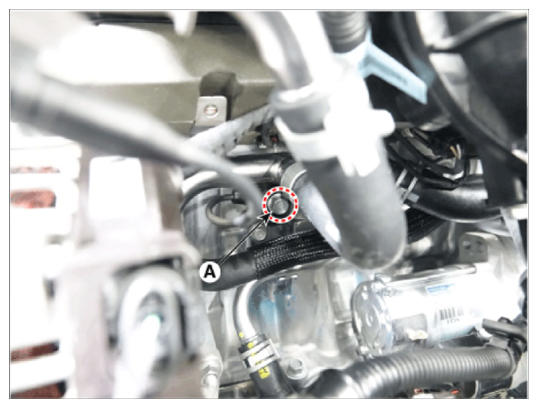

Remove the installation bolt (A), and then remove the sensor from the cylinder block.
Tightening Torque:

18.6 - 24.5 N.m (1.9 - 2.5 kgf.m, 13.7 - 18.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
