Repair Procedures: Installation

To install, reverse the removal procedures.

NOTE:

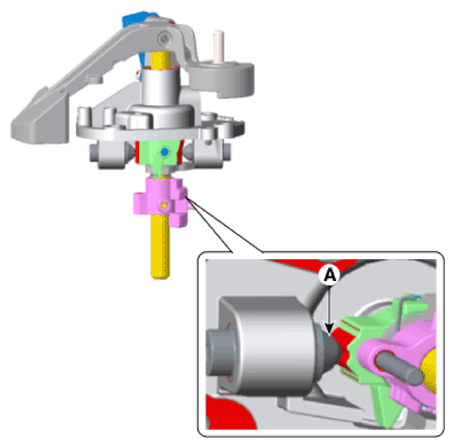

When installing, set control shaft lever to neutral position (A).

Courtesy of HYUNDAI MOTOR AMERICA

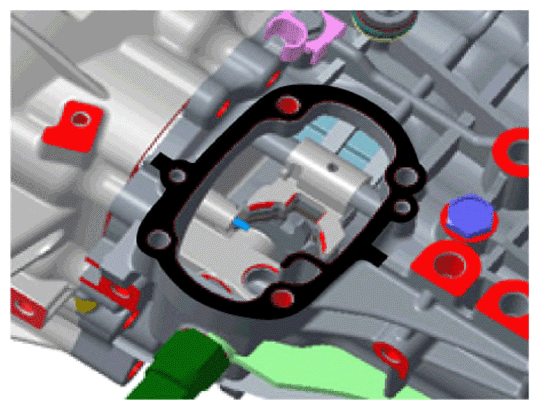

Apply the sealant to the contact surface of transaxle and control shaft.

Specified sealant : LOCTITE 5060

Courtesy of HYUNDAI MOTOR AMERICA

CAUTION:

Check operating of lever of transaxle side when operating shift lever after assembly. (1~6, R)
