Removal And Installation
- Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.

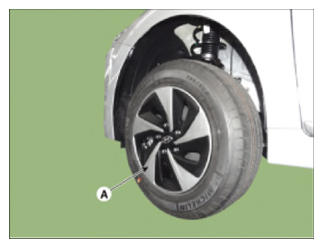

- Remove the front wheel and tire (A) from the front hub.
Tightening torque :
107.9 - 127.5 N.m (11.0-13.0 kgf.m, 79.6-94.0 lb-ft)
NOTE:- Be careful not to damage the hub bolts when removing the front wheel and tire (A).

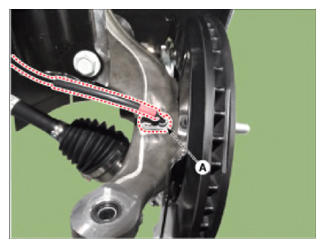

- Loosen the bolt and then remove the wheel speed sensor (A).
Tightening torque :
7.8-11.8 N.m (0.8-1.2 kgf.m, 5.8-8.7 lb-ft)

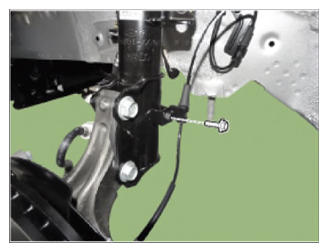

- Loosen the mounting bolt and then remove the brake hose from the strut assembly.
Tightening torque :
8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)
- Remove the front wheel guard.
(Refer to Body - "FRONT WHEEL GUARD ")

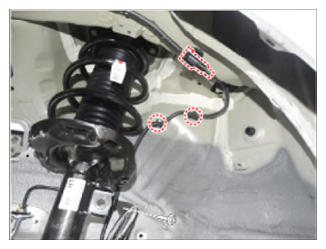

- Disconnect the connector after removing the cable bracket mounting bolt and fixed clip.
Tightening torque :
8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)
- Installation in the reverse of removal.
