Components And Components Location: Components

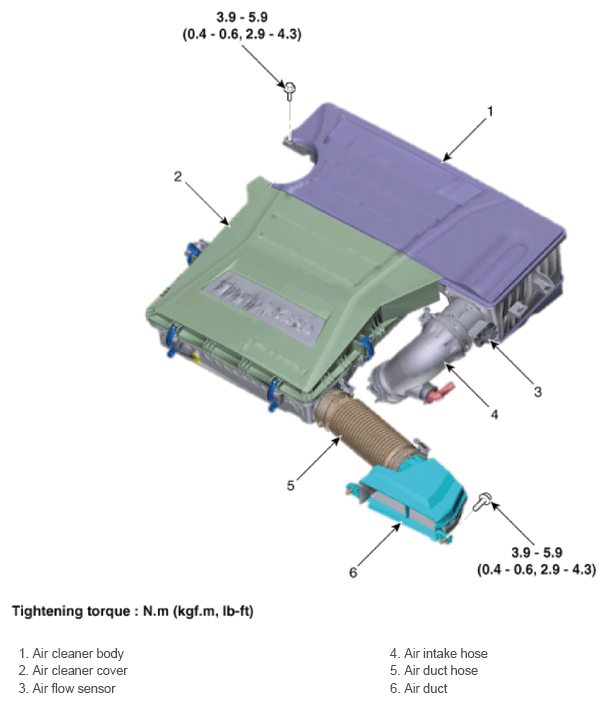

Fig 1: Air Cleaner Components Location With Torque Specification
G13562657Courtesy of HYUNDAI MOTOR AMERICA
