Components And Components Location: Components

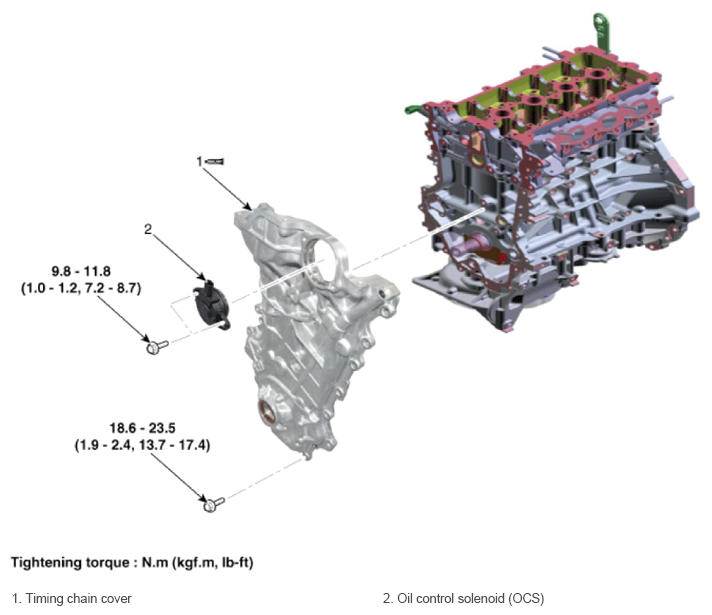

Fig 1: Timing Chain Cover Components Location With Torque Specification
G13562429Courtesy of HYUNDAI MOTOR AMERICA
