Components And Components Location: Components

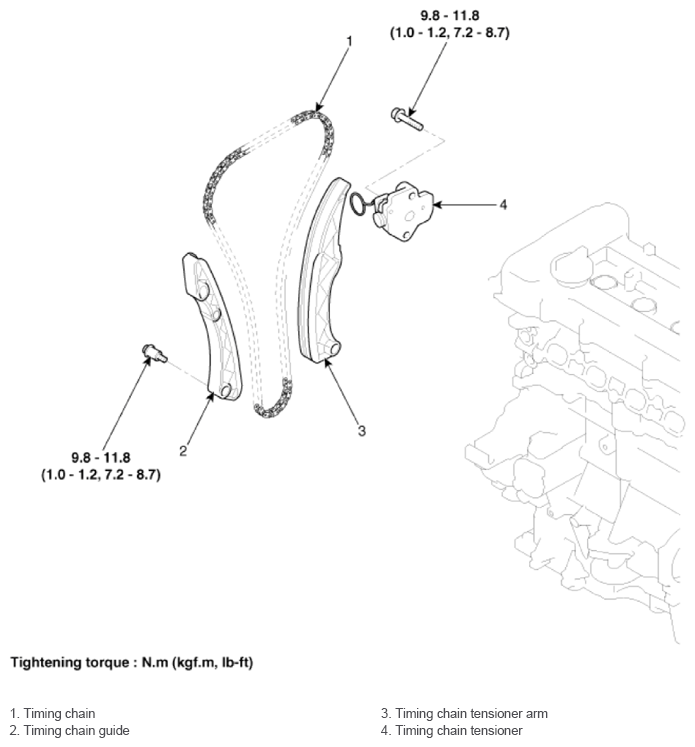

Fig 1: Timing Chain Components Location With Torque Specification
G13562436Courtesy of HYUNDAI MOTOR AMERICA
