CVVT Oil Control Valve (Exhaust)
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Remove the air cleaner assembly
(Refer to Engine Mechanical System - "AIR CLEANER ")

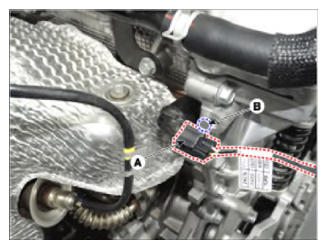

- Disconnect the CVVT oil control solenoid (A).
- Remove the installation bolt (B), and then remove the CVVT oil control solenoid from the engine.
