Repair Procedures: Removal

Turn ignition switch OFF and disconnect the negative (-) battery cable.

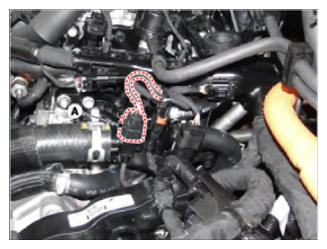

Disconnect the crankshaft position sensor connector (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the engine room nuder cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

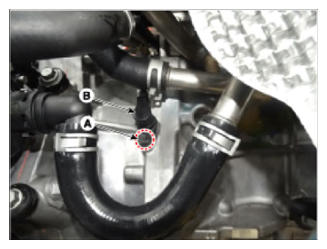

Remove the crankshaft position sensor (B) after loosening the bolts (A).

Courtesy of HYUNDAI MOTOR AMERICA
