Component Location

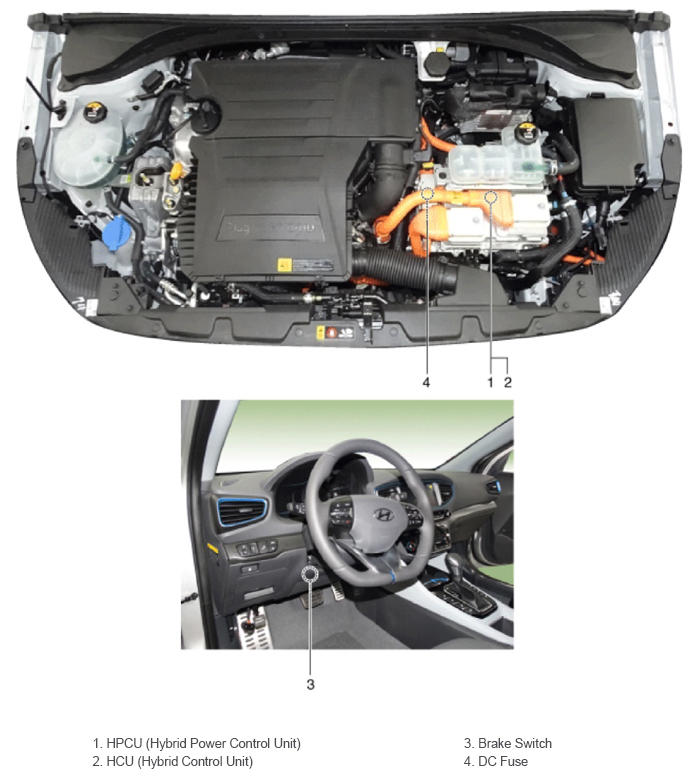

G13565634Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
  • HPCU includes the HCU (Hybrid Control Unit), Inverters (for Drive Motor, HSG and Electric A/C Compressor), MCU (Motor Control Unit) and LDC (Low DC/DC Converter).
NOTE:
  • For the location of the other control modules, refer to the relevant group.

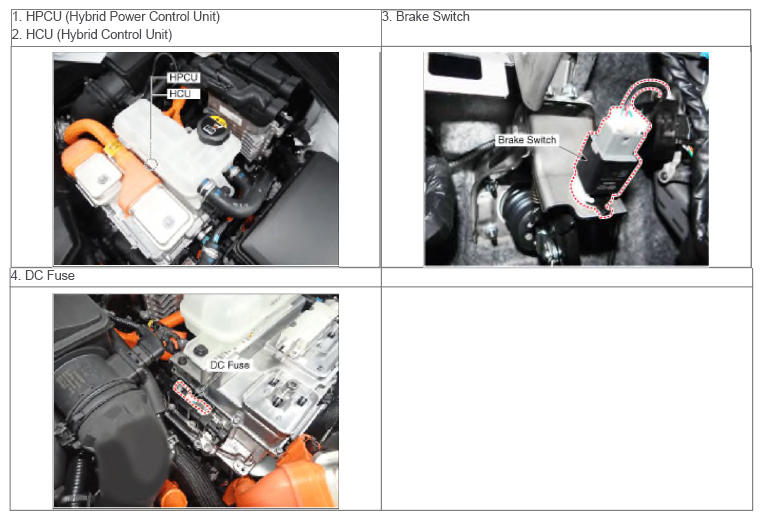

G13565635Courtesy of HYUNDAI MOTOR AMERICA
