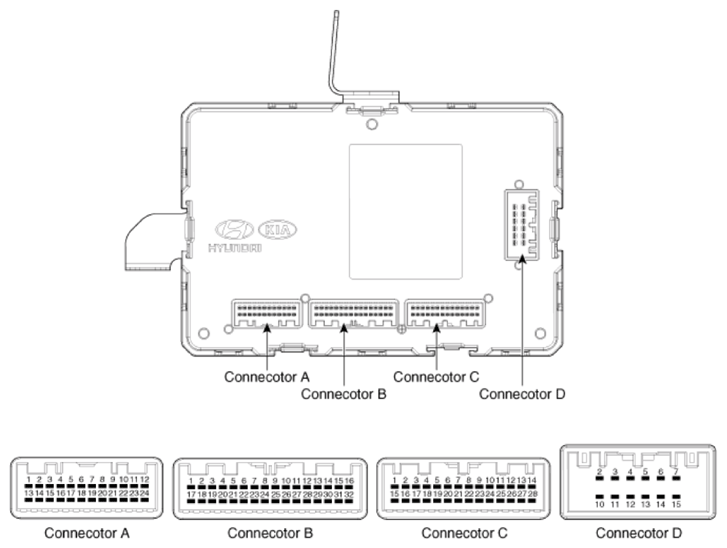

| 1 |
- |
Key in switch |
Wiper low relay |
IGN 1 |
| 2 |
- |
Steering heated switch |
Auto light ground |
IG2 Steering heated power 1 |
| 3 |
Rear left seat belt indicator |
- |
PAS ON Indicator |
IG2 Steering heated power 2 |
| 4 |
Passenger seat belt indicator |
- |
Steering heated indicator |
IG2 Steering heated power output |
| 5 |
Rear center seat belt indicator |
- |
- |
Room lamp |
| 6 |
Rear right seat belt indicator |
- |
- |
Ground |
| 7 |
- |
- |
Crash output |
Power |
| 8 |
- |
PAS Input |
Crash output |
- |
| 9 |
Mirror unfolding relay |
Key inter lock switch |
Auto light sensor |
- |
| 10 |
- |
Sunroof open switch |
NTC Sensor |
RPAS Power |
| 11 |
- |
PAS ON Switch |
- |
FPAS Power |
| 12 |
- |
Multifunction switch ground |
Wiper int vol relay |
Ground signal |
| 13 |
Key solenoid |
- |
Front wiper switch |
|
| 14 |
- |
- |
fog lamp switch |
| 15 |
ATM solenoid output |
- |
Wiper relay (High) |
| 16 |
- |
- |
Auto light (Power) |
| 17 |
Security indicator |
- |
Sunroof enable (High) |
| 18 |
Pocket lamp output |
- |
- |
| 19 |
Safety power window down (Low) |
C-Can (Low) |
- |
| 20 |
Key hole illumination |
C-Can (High) |
- |
| 21 |
- |
B-CAN (Low) |
Front wiper low backup switch |
| 22 |
- |
B-CAN (High) |
NTC Ground |
| 23 |
Mirror folding relay output |
- |
IGN 1 |
| 24 |
- |
- |
ACC |
| 25 |
|
PAS |
- |
| 26 |
- |
Front wiper washer switch |
| 27 |
- |
Blade position |
| 28 |
Defogger switch |
Brake switch |
| 29 |
LIN rain sensor |
|
| 30 |
LIN PAS |
| 31 |
- |
| 32 |
- |
