Repair Procedures: Installation

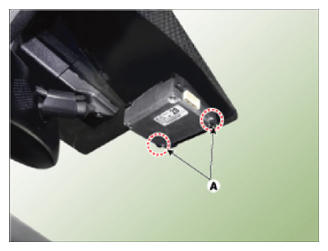

  1. Align front view camera with windshield bracket using forward edge point (A).
    G13565219Courtesy of HYUNDAI MOTOR AMERICA

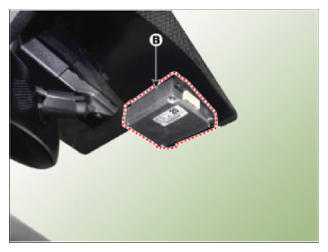

  2. Engage snaps and pivot upward to lock point (B).
    G13565220Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Front view camera is fully assembled when a single click sound is hear.

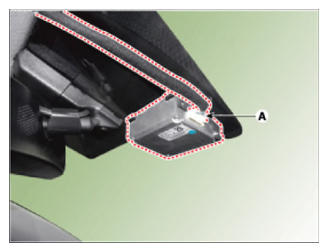

  3. Connect the front view camera connector.
    G13565221Courtesy of HYUNDAI MOTOR AMERICA
  4. Connect the negative (-) battery terminal.
