Components And Components Location: Components

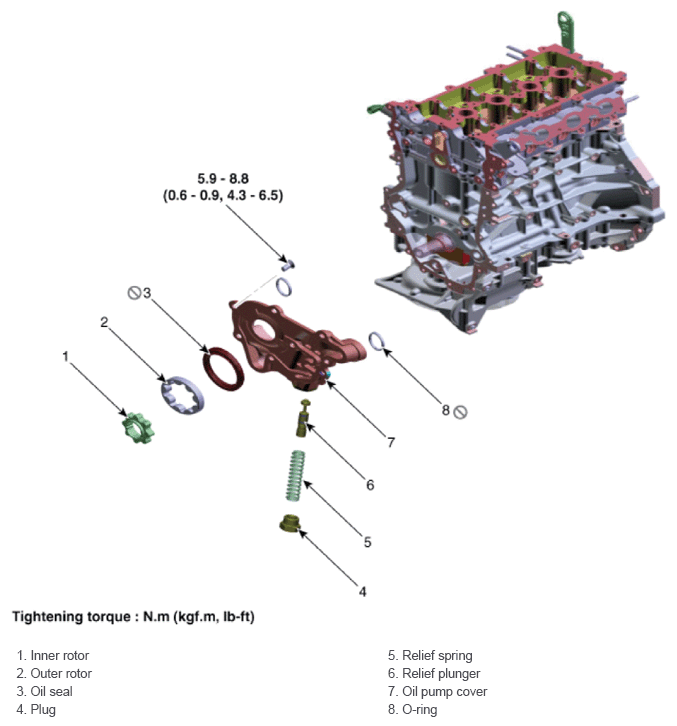

Fig 1: Oil Pump Components Location With Torque Specification
G13562639Courtesy of HYUNDAI MOTOR AMERICA
