Home › Hyundai › 2021 › Kona Limited, FWD › Repair and Diagnosis › Transmission › Transmission Control Systems › Dual Clutch Transmission Control System - 1.6L › Gear Actuator Assembly › Components And Components Location › Components

Components And Components Location: Components

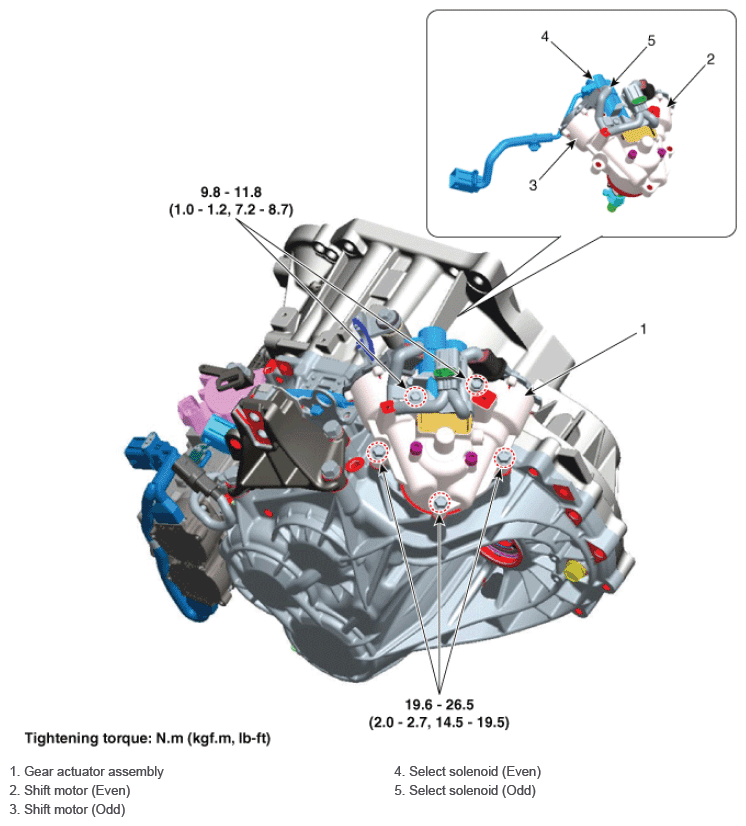

Fig 1: Locating Gear Actuator Assembly Components With Torque Specification
G12596897Courtesy of HYUNDAI MOTOR AMERICA
