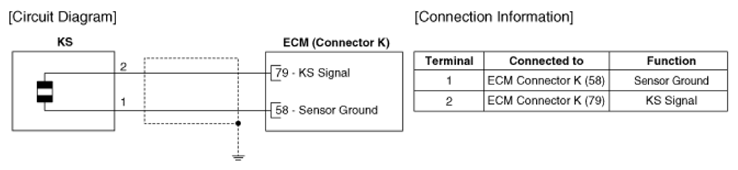

Home › Hyundai › 2021 › Kona Night, 4WD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 1.6L › Knock Sensor (KS) › Schematic Diagrams › Circuit Diagram › Notes
