Repair Procedures: Installation
- Check that the shift lever is placed in the "N" position.

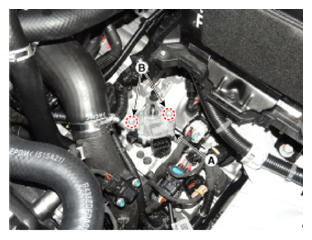

- Lightly tighten the inhibitor switch mounting bolts (B-2ea) after installing the inhibitor switch (A).

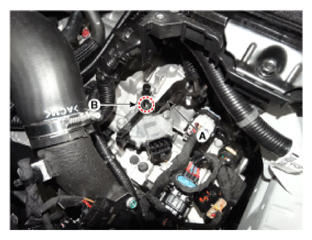

- Tighten the manual control lever mounting nut (B) with the specified torque after installing the manual control lever (A).
Tightening Torque:
(B) 17.4 - 24.5 N.m (1.8 - 2.5 kgf.m, 13.0 - 18.1 lb-ft)

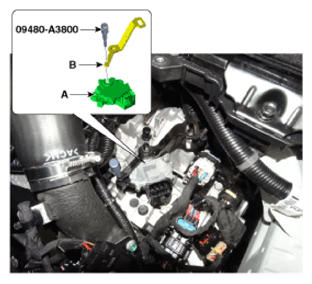

- Align the hole (B) in the manual control lever with the "N" position hole (A) of the inhibitor switch and then insert the inhibitor switch guide pin (SST No.: 09480 - A3800) in the matched hole.

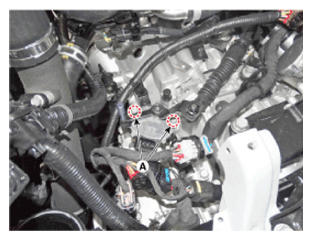

- Tighten the bolt (A) with the specified torque.
Tightening Torque:
(A) 9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

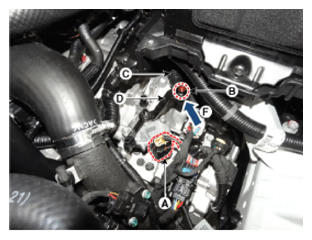

- Lightly tighten the nut (B) after connected the shift cable (C) in the manual control lever (D).
- Push shift cable (C) lightly to "F" direction displayed in image to eliminate free play of shift cable.
Tighten the nut (B) with the specified torque.
Tightening Torque:
9.8 - 13.7 N.m (1.0 - 1.4 kgf.m, 7.2 - 10.1 lb-ft)
- Connect the inhibitor switch connector (A).
- Remove the inhibitor switch guide pin (SST No.:09480-A3800) from the hole.
- Install the air cleaner assembly and air duct.
(Refer to Engine Mechanical System - "AIR CLEANER ")
CAUTION:- Check that operating surely at each range of the inhibitor switch corresponding to each position of shift lever.
