Bank 1/Intake

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.

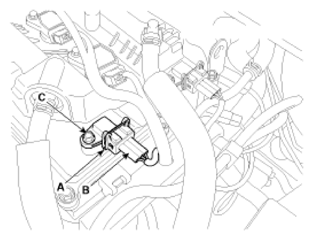

  2. Disconnect the camshaft position sensor connector (B) after removing the clip (A).
  3. Remove the installation bolt (C), and then remove the sensor.
    G12606902Courtesy of HYUNDAI MOTOR AMERICA
