Home › Hyundai › 2021 › Kona SE, FWD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.0L › Variable Charge Motion Actuator (VCMA) › Components And Components Location › Components

Components And Components Location: Components

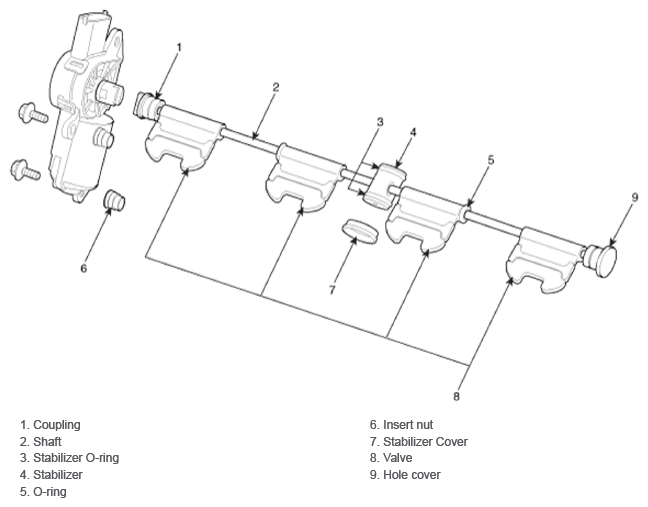

Fig 1: Variable Charge Motion Actuator Components
G12606939Courtesy of HYUNDAI MOTOR AMERICA
