Repair Procedures: Removal

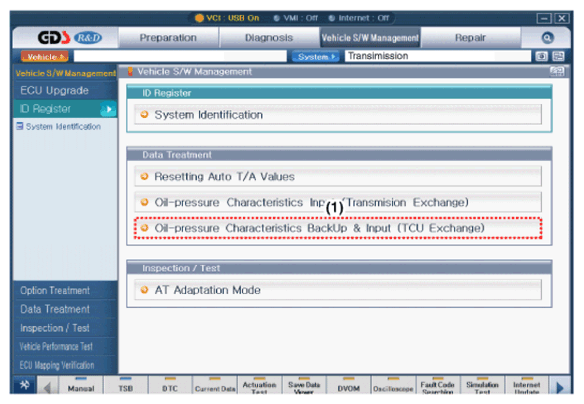

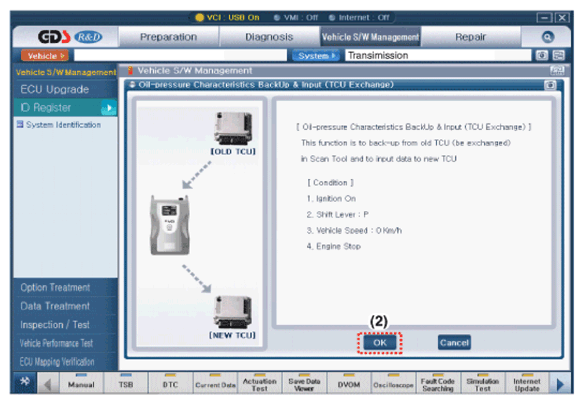

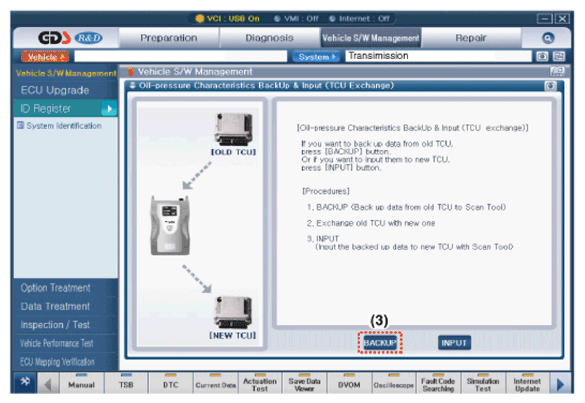

- Oil-Pressure Characteristics Backup (TCM Exchange).
- Turn ignition switch OFF and disconnect the negative (-) battery cable.
- Remove the battery.
(Refer to Engine Electrical System - "BATTERY ")

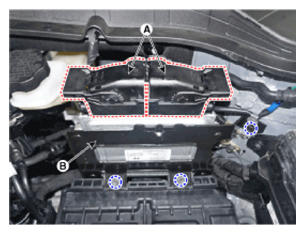

- Disconnect the TCM connector (A).
- Remove the TCM (B).
