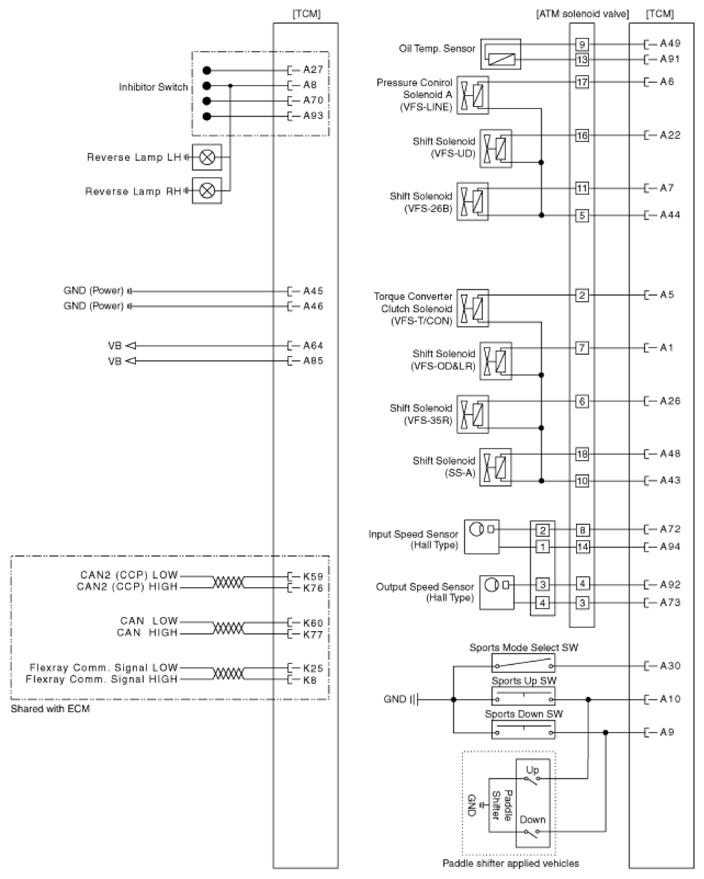

Home › Hyundai › 2021 › Kona SE, FWD › Repair and Diagnosis › Transmission › Transmission Control Systems › Automatic Transaxle Control System - 2.0L › Transaxle Control Module (TCM) › Schematic Diagrams › Circuit Diagram › Notes
