Components & Components Location: Components

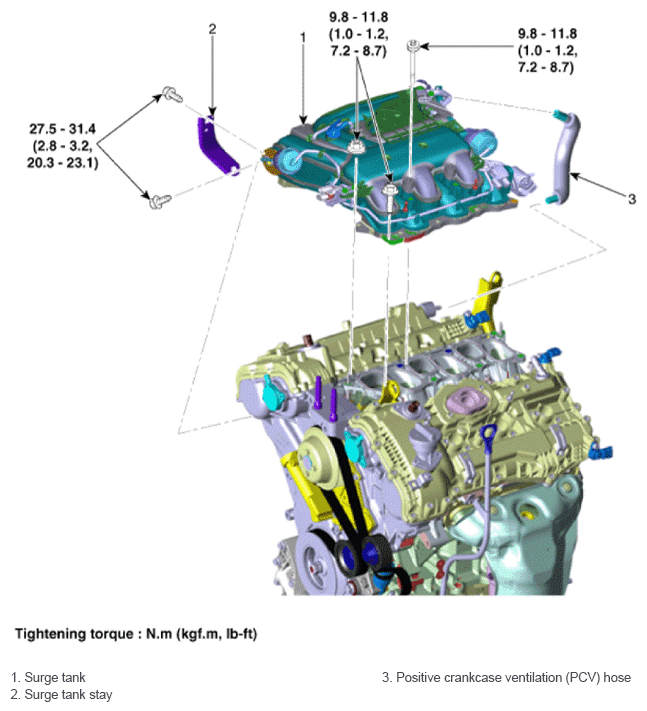

Fig 1: Surge Tank Components Location With Torque Specifications
G14423500Courtesy of HYUNDAI MOTOR AMERICA
