[Bank 1/Exhaust]
- Turn ignition switch OFF and disconnect the battery negative (-) terminal.
- Remove the air cleaner assembly.
(Engine Mechanical System - "Air Cleaner")

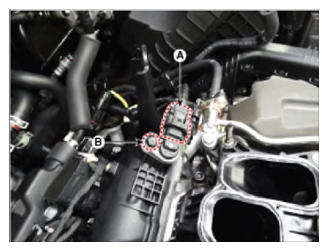

- Disconnect the camshaft position sensor connector (A).
- Remove the mounting bolt (B), and then vertically remove the sensor from the cylinder head.
Crankshaft Position Sensor mounting bolt:
7.8 - 8.8 N.m (0.8 - 0.9 kgf.m, 5.8 - 6.5 lb-ft)
