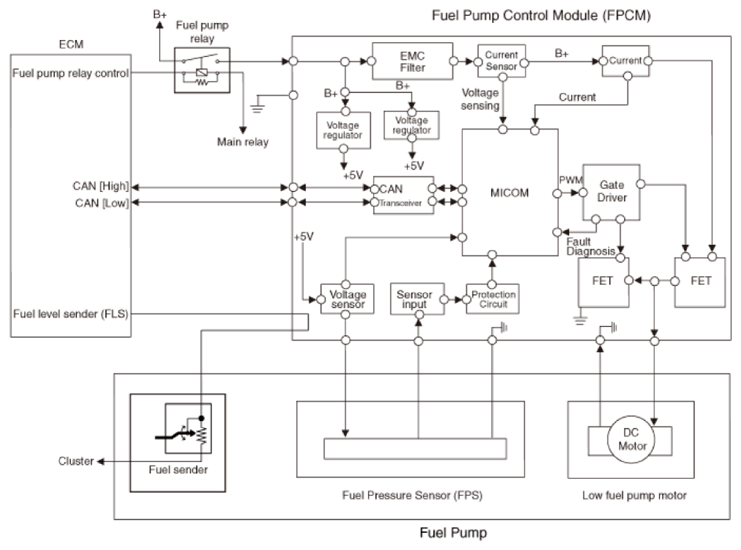

Home › Hyundai › 2021 › Palisade Calligraphy, 4WD › Repair and Diagnosis › Engine Performance › Fuel Delivery › Fuel Delivery System › Fuel Pump Control Module (FPCM) › Schematic Diagrams › Circuit Diagram
