Monitor Current Data

Ignition "OFF"
Connect GDS to Data Link Connector (DLC).
Ignition "ON" & Engine "ON"
Monitor following parameters in "Current Data" with GDS.
Specification: Refer to illustrations shown below

Courtesy of HYUNDAI MOTOR AMERICA

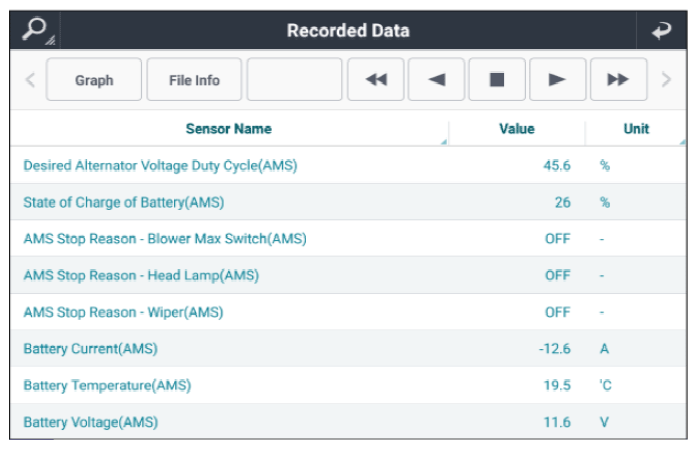

Fig.1) Alternator Duty current data at idle and no electrical load

Courtesy of HYUNDAI MOTOR AMERICA

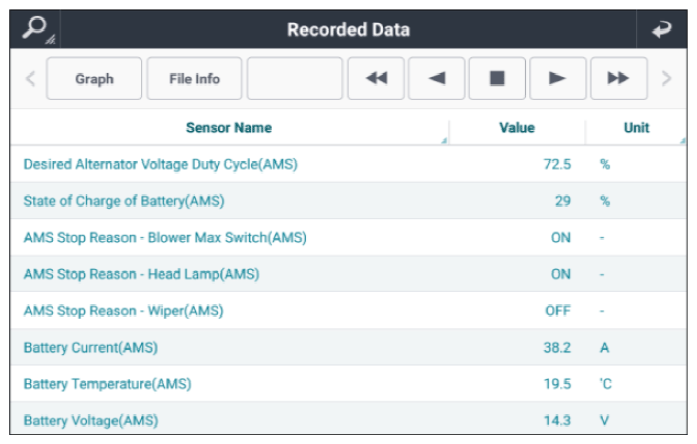

Fig.2) Alternator Duty current data at idle and electrical load
