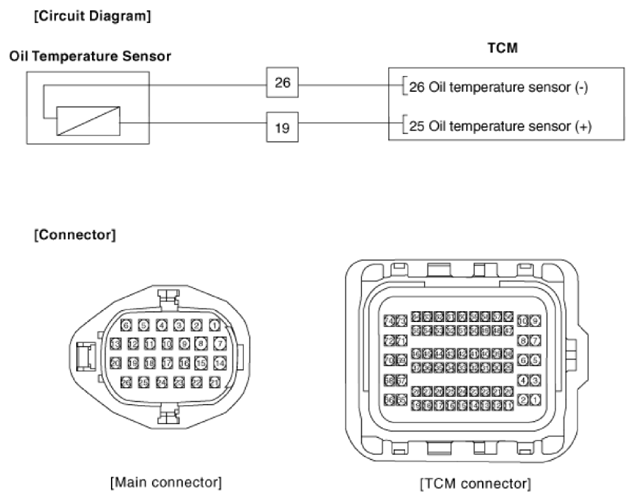

Home › Hyundai › 2021 › Palisade Calligraphy, 4WD › Repair and Diagnosis › Transmission › Transmission Control Systems › Automatic Transaxle Control System › Oil Temperature Sensor (Main Harness) › Schematic Diagrams › Circuit Diagram
